Introduction to Business computing

Session03

Introduction to the spreadsheet Excel

The general look and feel : we are familiar with most of the items of the menu bar, standard toolbar and formatting toolbar
What is the same and what changed in the three principal bars
What is a spreadsheet, what is it for
Dan Bricklin, Bob Frankston and VisiCalc
Cells, rows, columns
A cell has three characteristics :
- Its address
- Its content. It can be :
  - A number (for instance : 12 )
  - A chain of characters (for instance : Eastern sales for the month of February )
  - A formula (for instance : =C2*D5 )
- Its name (the default name is the address)
Result display vs formula display :
- to see the formula in a cell, select the cell and press F2
- it is also possible to see all the formulas in all the cells at the same time (tools -> options -> display -> display formulas)

Basic calculations

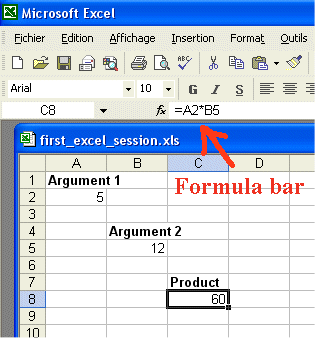

In the above sheet, the cell contents are :
- A1 : the chain of characters Argument 1
- A2 : the number 5
- B4 : the chain of characters Argument 2
- B5 : the number 12
- C7 : the chain of characters Product
- C8 : the formula =A2*B5, but here we view the result of the formula, namely the number 60
To view the formula itself contained in the cell C8, select the cell and press F2
We can also readily see the formula in C8 by selecting C8 and looking into the formula bar

Several sheets

In this spreadsheet we created four sheets named results, quantities, values, and finance

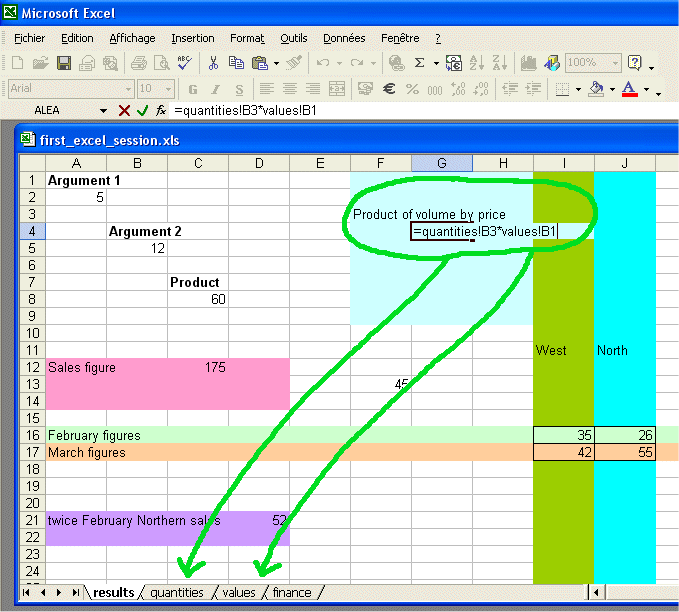

In the cell G4 of the sheet "results" we entered a formula that calls for the cell B3 of the sheet "quantities", and the cell B1 of the sheet "values". The formula multiplies them, the result (which is not displayed here, since we display the formula) is 175

Naming cells

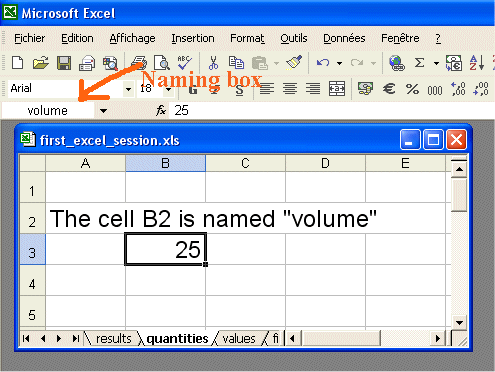

In the sheet "quantities" we renamed the cell B3 "volume" (see the Naming box)
So now in the whole four sheets one cell is named "volume" : it is cell B3 of the sheet "quantities"
Similarly we renamed "price" the cell B1 of the sheet "values".
The content of "volume" is 25
The content of "price" is 7

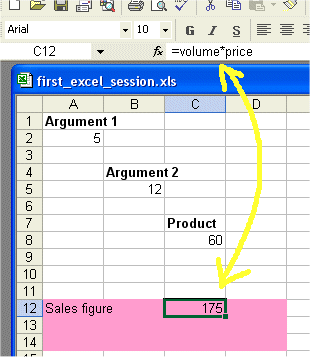

Therefore wherever we enter the formula "=volume*price" we shall get : 175. See below

Naming entire columns and rows

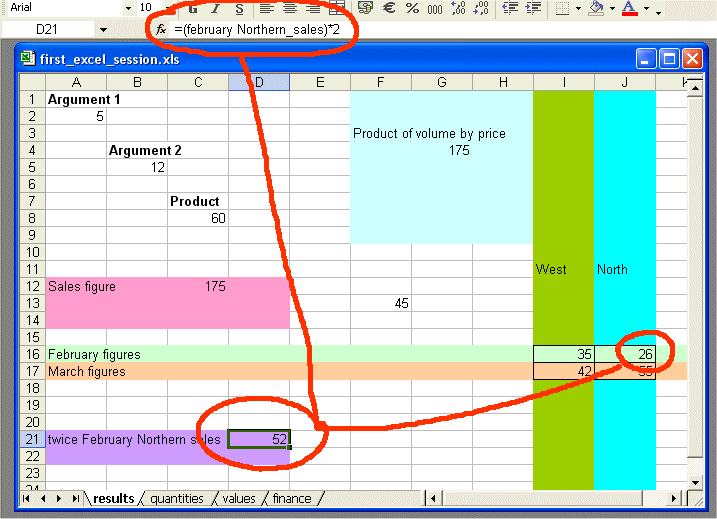

Above we renamed the entire column J "Northern_sales" (no blanks in names)
We also renamed the entire row 16 "february"
In cell D21 we entered the formula "=(february Northern_sales)*2" (do not type the quotes), therefore we obtain the result 52

Using Excel in a financial example

The deal to examine :

We are offered to pay $100 today, in order to receive $60 (cell D7) in one year and another $75 (cell E7) in two years. These two future payments are not sure, so we "discount" them to evaluate "their equivalent value today"
The discount rate we shall use to discount the "future money" is 10% each year (cell B3)
Is it a good deal ?

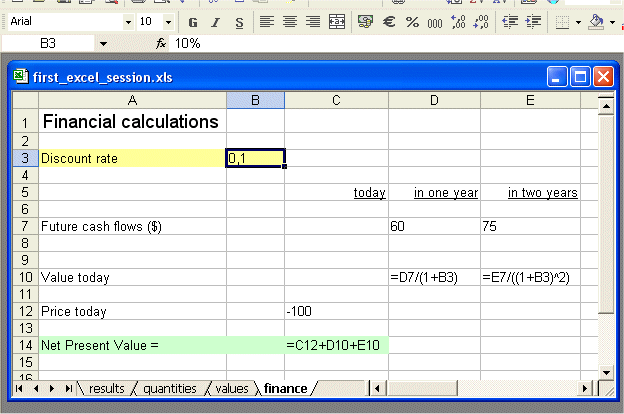

Here is how we set up our spreadsheet :

In D10 we enter the "present value" of the $60 to be received in one year. The calculation is 60 / (1 + 10%), but since we want to have the correct result whatever are the inputs, we enter the formula "=D7/(1+B3)" (do not type the quotes), that way the result stays correct if we change 60 into another figure.
In E10 we enter the formula for the present value of $75 in two years. With the actual numbers we use it is 75 / [ (1+10%)² ] . But we want this result to hold correct even if we change the content of B3, of E7, so we enter the formula "=E7/((1+B3)^2)" (do not type the quotes)
With actual numbers we entered as inputs, the Net Present Value of this deal is -100 + 54,55 + 61,98 .
This is equal to $16,53 . That is the deal we are offered is like exchanging today $100 for $116,53 received today too. Definitely a good deal !

The further question :

Up to which discount rate is the deal still good ?
(Discount rates measure the risk of future cash flows - in a way we will study next year.)
Let's use Excel to try out various contents in the cell B3

for instance we see that at a discount rate of 30% the Net Present Value of the deal is negative (-$9,47)
so the discount rate for which the NPV is zero is somewhere between 10% and 30%
Try various values to find out precisely the one the makes the NPV equal to zero.
This illustrates the usefulness of Excel (it is exactly for this kind of repetitive calculations that VisiCalc was invented in the late 70's)

Miscellaneous : copying, lists, navigating

Simple copy and elaborate copy : repeat January twelve times, or create "January to December"
Create a list of chinese cities
Navigating within the sheet (Go to : ctrl + T)
Going to a cell or a group of cells by calling its name

Formatting

A second example

A quarter by quarter income statement
More on the "copy" action and its various possibilities
The concept of parameters
Copying/pasting using the $ sign (to keep the proper reference to a parameter)
Column totals
Rows totals
Automatic sum
Varying the parameters : the power of a spreadsheet
Dynamic link between an Excel sheet and a word document : copying an Excel table and pasting it into a Word document, in such way that when we change the figures in Excel they are changed in Word (Special paste with dynamic link)

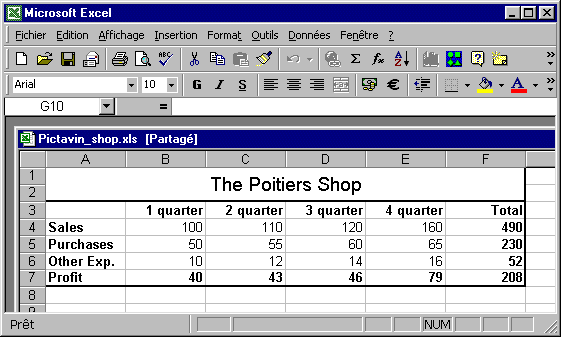

Excel side :

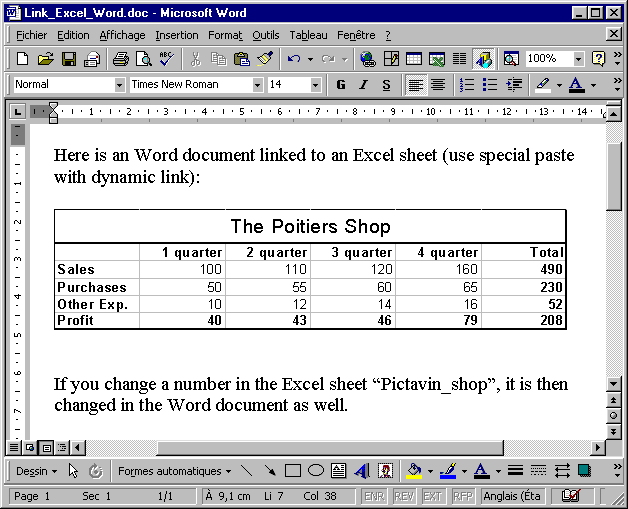

Word side :

Saving

Printing
